The Manrose WF230P is a high-performance, 230mm (9") commercial extractor fan designed for both wall and window mounting.
It is primarily distinguished by its manual pull-cord operation and fixed grille design, which allows for continuous trickle ventilation even when the fan is switched off.
Key Specifications
Performance: Delivers an extraction rate of 668m³/hr (185 litres per second), suitable for large kitchens, utility rooms, offices, and shops.
Build: Constructed from high-impact, high-gloss ABS thermoplastics for durability and ease of cleaning.
Dimensions: 286mm x 286mm with a depth of 141mm.
Noise Level: Operates at a sound level of 50.0 dB(A) at 3 metres.
Electrical: Requires a 220-240V AC supply and consumes 41W; it is double-insulated and does not require an earth connection.
Protection: Rated IP44, making it splash-proof and suitable for moisture-prone areas.
Installation Details
Window Mounting: Fits into a standard 260mm diameter hole.

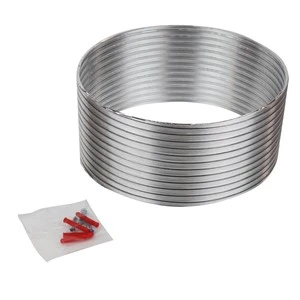

Wall Mounting: Requires a separate Wall Fixing Kit (Cat. No. 1301).
Safety: Must be installed at least 1.8m above the floor and out of reach of anyone using a bath or shower.
| Mounting | Window or Wall |
| Size | 9" |
| Brand | Manrose |
