The Manrose WF230S is a basic 230mm (9") axial extractor fan designed for wall or window installation in both commercial and domestic settings. This model is characterized by its fixed louvres, which provide continuous trickle flow ventilation even when the fan is switched off.
Key Specifications
Performance: Features a high extraction rate of 668m³/hr (185 litres per second).
Build: Manufactured from high-impact ABS thermoplastics for durability and ease of cleaning.
Motor: Powered by a four-pole single-phase induction motor with pre-oiled bearings, designed for a long, maintenance-free life.
Dimensions: The unit measures 286mm x 286mm with a depth of 141mm.

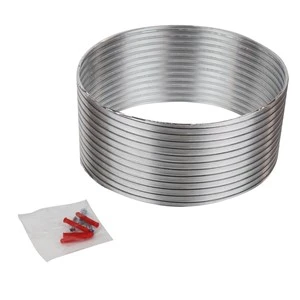

Installation: Designed for a standard 260mm diameter hole for window mounting. A separate wall kit (Cat. No. 1301) is required for through-wall mounting.
Technical Data
Power Consumption 41W
Voltage 220-240V AC, 50Hz
Sound Level 50.0 dB(A) at 3 metres
Fan Speed 1250 RPM
IP Rating IP44
Max Temperature 40°C
| Mounting | Window or Wall |
| Size | 9" |
| Brand | Manrose |
