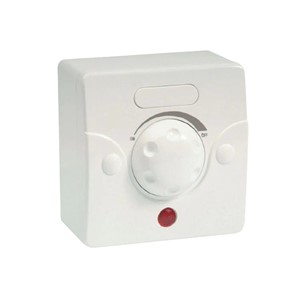

The Manrose COMTSCV is a variable, non-reversing fan speed controller designed specifically for commercial ventilation systems.
It is primarily used with the Manrose Commercial Series of wall and ceiling fans.
Key Features & Specifications
Variable Speed Control: Allows for precise adjustment of airflow, which can improve energy efficiency and reduce noise levels.
Load Capacity: Suitable for electrical loads between 20W and 200W.
Compatibility: Specifically designed for use with the 150mm (6") commercial fan range, including COMT150 and COMT150A models.
Features a built-in neon light to provide visual confirmation when the unit is powered on.
Fits a standard 20mm deep single pattress (wall box).
Technical Details
Operation: Non-reversing; the control knob turns the fan on at full speed, with further clockwise rotation reducing the speed to the desired level.
Safety: Double insulated (does not require an earth) and includes overload protection.
Installation Requirement: Must be installed using a double pole switched and fused spur (3A fuse) according to IEE regulations.
| Brand | Manrose |
